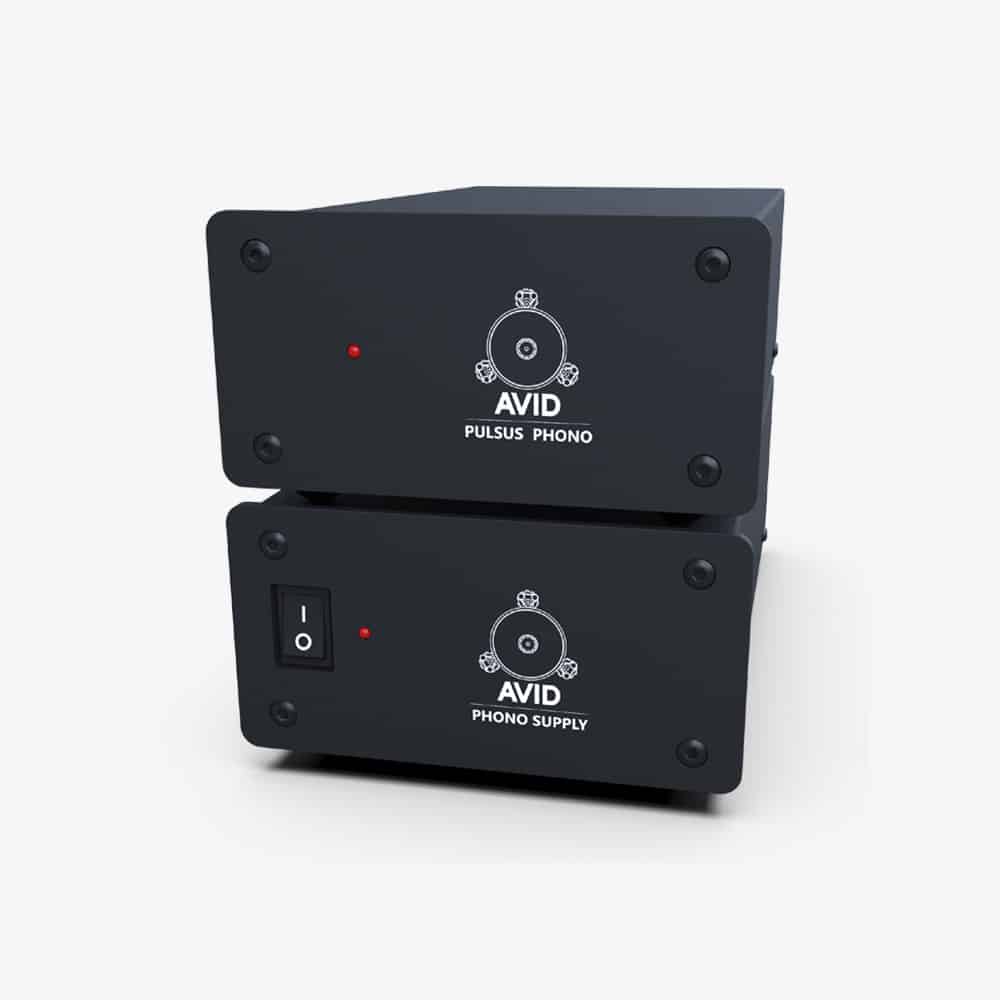

Pulsus Phono Stage
Embodying the experience gained during the development of AVID’s flagship designs, technological advancements have been trickled down to this exceptional but more approachable phono stage.
5 Years |
Description
Designed from first principles, Pulsus is an un-balanced design with outstandingly low distortion and noise across the audio spectrum, retaining and exposing every intricate detail.
Surpass Expectation
Only extremely high-specification components achieve a place within our handcrafted phonostages, each one constructed to military grade specifications for a lifetime of service.
Gain, Resistance and Capacitance are all easily adjustable from the underside of the casework, offering exceptional flexibility and an external regulated supply provides refined smooth power to maintain its poise, revealing layers of detail and delicate musicality that will surpass your expectations.
Hand Crafted
Manufactured within our own facilities, each phono stage is painstakingly hand assembled with every stage being scrutinized. Each bare board PCB is populated and soldered by a skilled producer and assembled into flawless casework with brutal testing during quality control to ensure a faithfully reliable product that will delight vinyl lovers with its pace, dynamics, accuracy – and, above all, its musical integrity.
Key Features
- MM, MC Low, MC Hi Gain
- Switchable Capacitance
- Seven Loading Values
- Exceptionally Low Noise
- External Shielded PSU
Product Specifications
Noise
< –81 dB (MM)
< –67 dB (MC)
Distortion
< 0.001%
RIAA
5 Hz – 70 kHz ±0.5 dB
Gain
48 dB / 60 dB / 70 dB
Resistance
100R – 300R – 500R – 1K – 5K – 10K – 47K
Capacitance
100pf – 200pf – 500pf
Output impedance
20 Ω
Power supply
Regulated with 35va transformer
Dimensions
120 × 220 × 70 mm (W × D × H)
Voltage Input
100-240vac 50/60Hz 10 WATTS MAX
Net weight
Control unit – 1.0KG (2.2LB) – PSU – 1.7KG (4LB)
