XP-27 Phono Stage

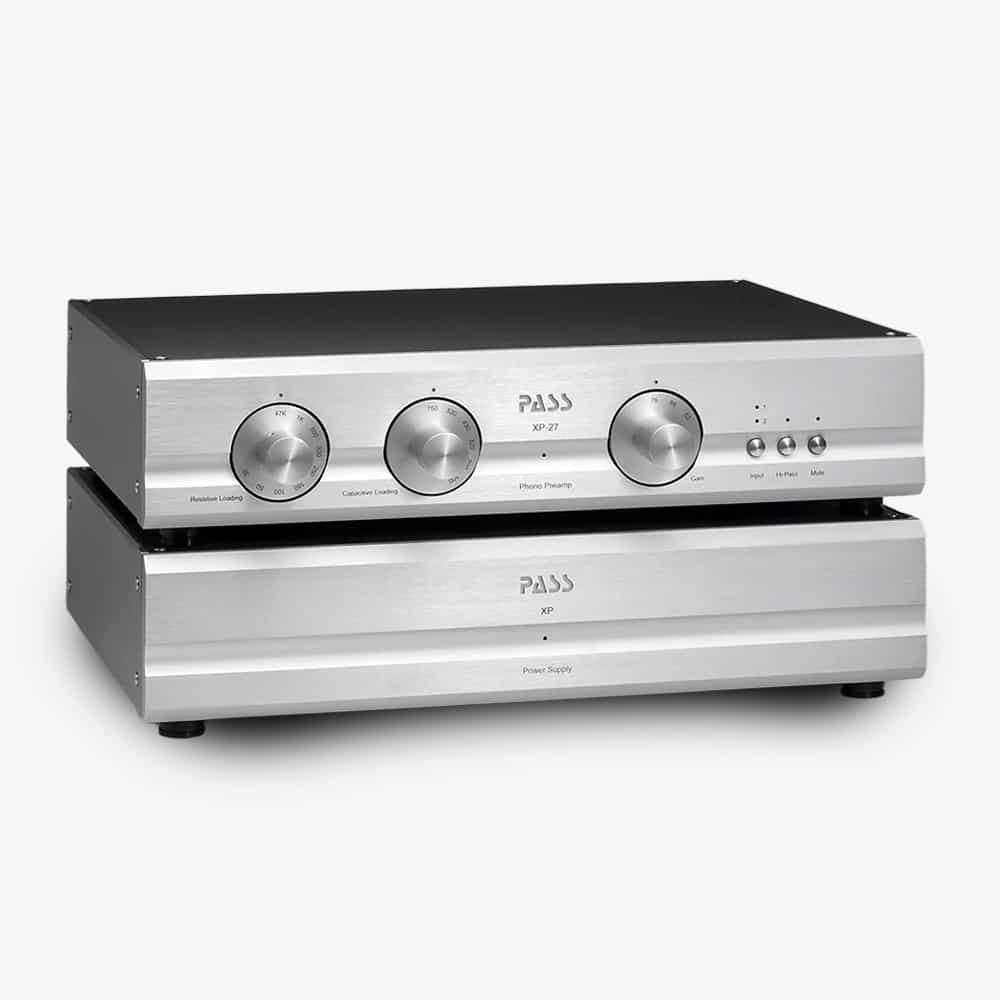

Two chassis preamplifier delivering enhanced RIAA performance at a fraction of the previous distortion.
3 Years |
Description
The twin chassis XP-27 eclipses the already exceptional performance of the well-reviewed and well-received XP-15, XP-25 & XP-17. The new design uses double shielded low noise toroidal transformers in external supply connected via aviation grade circular connectors using silver over oxygen free copper. The power supply is dual mono with two transformers with lower radiated and mechanical noise. Noise is the most prominent part of THD+N at low levels, so by lowering noise we get better resolution and dynamics.The XP-27 input and gain circuitry are similar to that found in the Xs Phono. This means switching and loading is done at higher signal levels, minimizing noise and improving low level performance.

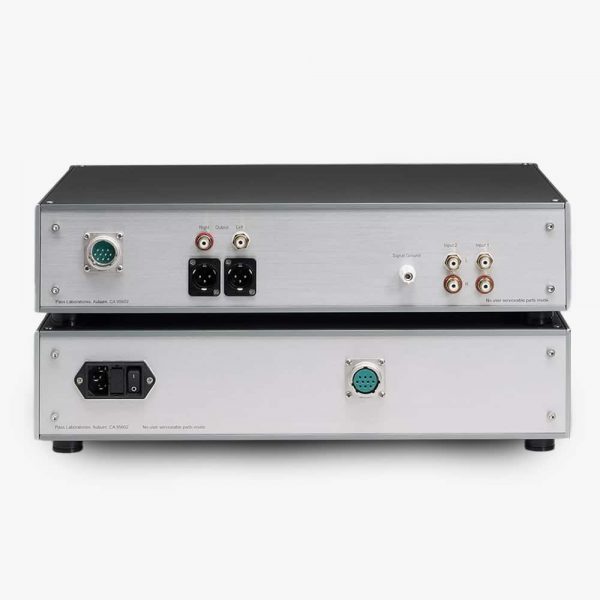

“The XP-27 phonostage is also a two-box design. On the rear panel of the control unit, in addition to the power connections, are two sets of RCA inputs—this phonostage can be connected to two turntables or dual tonearms on one ’table—and two pairs of outputs, one each XLR and RCA.”
TAS Golden Ear Award – 2021
Product Specifications
Gain options
56, 66, 76dB
Inputs
1
RIAA response
plus/minus .1 dB 20-20 KHz
Power consumption
40 watts
Number of chassis
1
Dimensions, each chassis
17”W x 12”D x 4”H
Weight (Lbs)
19
