Hydra Alpha A10 UK Mains Conditioner
The Hydra Alpha A10 UK, part of the Performance Line of power distributors, delivers a legitimate wonder of design innovation by incorporating Shunyata Research’s most exclusive technologies
2 Years |
Description
With ten outlets, the Hydra Alpha A10 UK is large enough to power entire systems, yet affordable enough to suit almost any budget or application.
Replete with the same patented science, custom parts and objective noise reduction that made the Triton v2 and Hydra Denali models famous, Hydra Alpha A10 UK delivers this technology in a stunning, yet affordable package.
Based on objective performance and hand-crafted quality, Hydra Alpha A10 UK is destined to become one of Shunyata Research’s most iconic products.
True to form, Shunyata Research wasted no time in applying its finest patented technologies and performance features – previously available only in Hydra Triton v2 and Hydra Denali models – into the affordable Hydra Alpha A10 UK model.
In addition to offering enough outlets to power any complex system, this Hydra model delivers a staggering > 60dB @ 1mHz of noise reduction spread over 6 zones of isolation – consisting of 4 duplex and 2 individual socket zones. By any standard, the performance of the unit represents a new benchmark for performance at and well beyond its retail price.
The Hydra Alpha A10 UK delivers all this performance along with Shunyata Research’s signature DTCD® (Dynamic Transient Current Delivery) technology, allowing the unit to be paired with an unlimited variety of electronics including high-current amps, projectors, digital front ends and entire systems.
The unit comes equipped with Shunyata Research’s finest Trident-Defense protection system – backed up by an uncompromising Limited Lifetime Transferable Warranty.
Product Specifications
Maximum Voltage
220-250 VAC r.m.s. unregulated
Input Current Ratings
Maximum Continuous Current: 16A
Output Current Ratings
Max Current/Socket: 16A
Transient Suppression
Maximum Transient Protection: 40,000 A @ 8/50 μs
Over-Current Protection
Hydraulic Electromagnetic Breaker
Wiring System
8 gauge ArNi® VTX™ Buss System
10 gauge ArNi® VTX™ Wiring
Ratings
600 V 105° C
Noise Suppression
Input to Output (100 kHz – 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 60 dB reduction

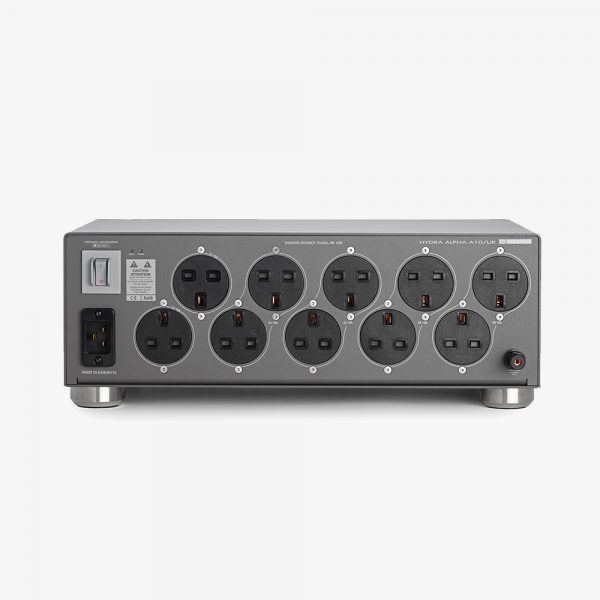

Connectors & Sockets
Inlet: IEC C19R
Outlet Sockets: 10 BS-1363 (3-pin)
Isolation Zones: 6 individual zones
Vibration Control
Vibration dampening panels (internal)
AC outlet dampening gaskets
Shunyata Isolation SSF-50 Footer
Construction
Aluminum and steel chassis
Anodized, aluminum faceplate
GPNR
Length: 127 mm
Diameter: 38 mm
Dimensions
Width: 17.0 inches (43.2 cm)
Depth: 11.5 inches (29.2 cm)
Height: 6.3 inches (16.0 cm)
Weight: 19.5 lbs (8.85 kg)
