Mcintosh

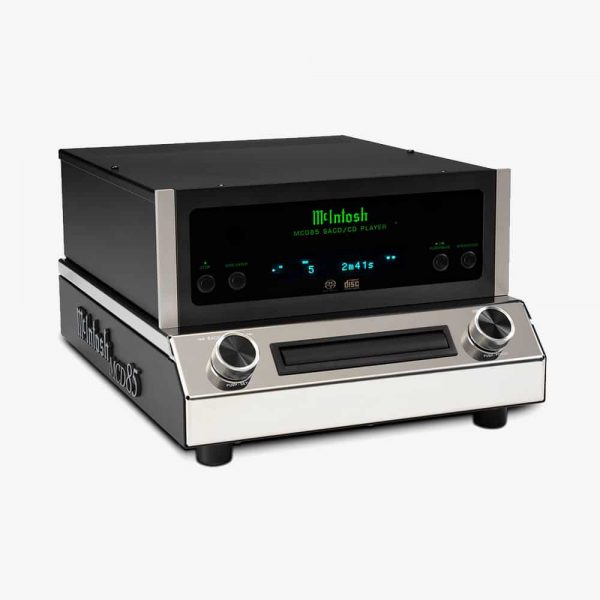

MCD85 CD player

The retro styled MCD85 is a channel SACD/CD Player with a stunning 32-bit PCM/DSD Quad Balanced DAC

3 Years

£4,995

Enquiry

Description

Immerse yourself in your music with the MCD85 SACD/CD Player. The MCD85 with its open chassis design is not only a serious piece of music hardware, but it shows that you are serious about your love of music. With the great success of the similarly retro styled MC275 and MC1502 Vacuum Tube Amplifiers, MA252 and MA352 Integrated Amplifiers, and the warm reception of the recently introduced MC830 Solid State Amplifier and C8 Vacuum Tube Preamplifier that also have retro touches, it’s clear that many people want their home stereo system not to blend in, but instead to be distinctive looking. To be put on display. To be a conversation starter. To make the statement that “A Serious Music Lover Lives Here.” The MCD85 does all that. And more.

The MCD85 can play store bought SACDs and CDs as well as music from homemade CD or DVD Data Discs. Numerous file formats can be played from these discs including AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV, and WMA. The USB Audio input supports up to DSD256 and DXD 384kHz, and can be used to stream digital music from a computer or other digital storage device. There’s also two coax and two optical digital inputs that support PCM signals up to 192kHz.

Conversion of the digital data stored on the discs or in the digital music stream into an analogue signal for playback is performed by a quad balanced, 8-channel, 32-bit/192kHz Digital-to-Analogue Converter (DAC). Four DAC channels are dedicated to the left audio channel, and four to the right audio channel to ensure truly exceptional stereo sound reproduction.

Both balanced and unbalanced fixed analogue stereo outputs are available to connect the MCD85 to your preamplifier, integrated amplifier, and other home audio system components. Thanks to its narrower width and balanced outputs, it can be placed close to your listening position for ease of loading discs, with long balanced cables connecting it to your audio system without fear of signal loss.

The MCD85 employs 2x read speed, meaning all discs placed in its sturdy die-cast tray are read at higher speeds, allowing their data to be stored in a buffer memory for better error correction and tracking. The tray features a new, custom front bevelled nose to match the angle of the chassis and provides smooth and quiet disc handling. Disc reading is performed in the high-quality disc mechanism by a twin laser optical pickup that uses a single objective lens with two laser units, with each employing different wavelengths that are optimized for SACD and CD playback. Power Control and data ports allow for seamless integration with other McIntosh home audio system components.

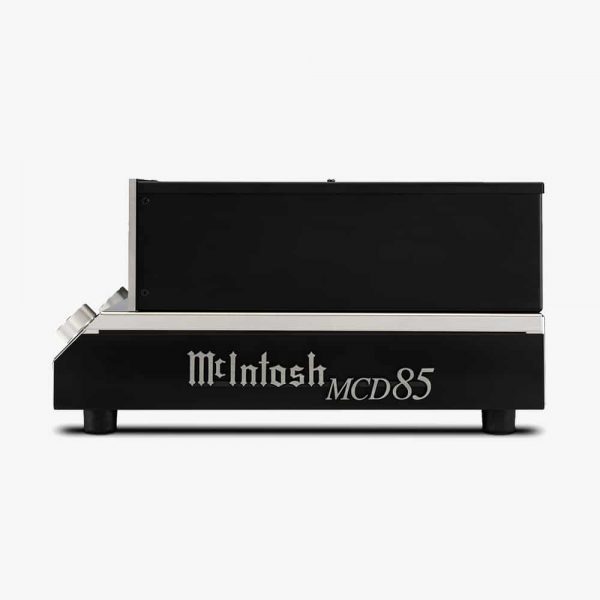

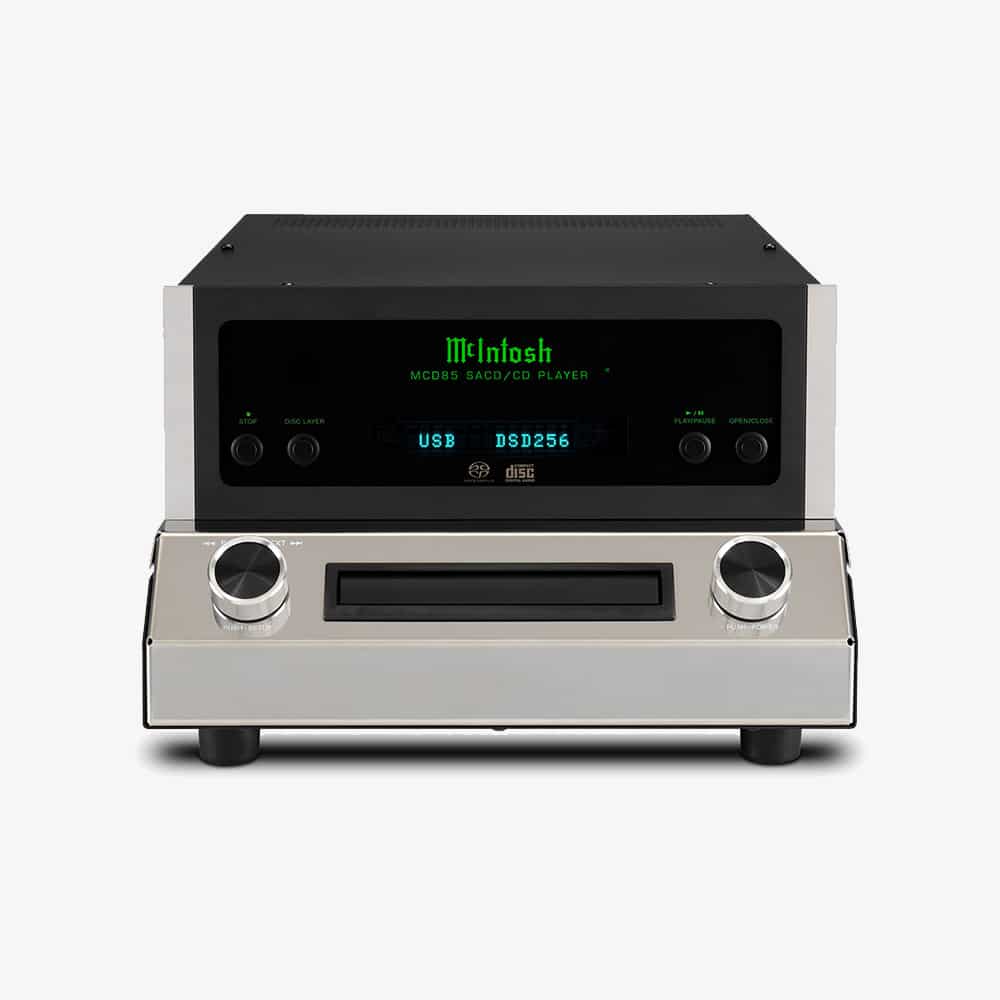

A die-cast aluminium name badge is affixed to each side of the chassis. The front, top and rear of the chassis is polished to a mirror finish – just like on the aforementioned MC275, MC1502, MA252, MA352, MC830 and C8 – making the MCD85 a welcome and matching addition to any system using those models. But the MCD85 is not limited to systems using just those models as it has all the necessary connections and McIntosh design traits to fit into any McIntosh home audio system. The MCD85 features a black glass front panel with direct LED backlighting for improved appearance, silver trim, an illuminated logo, and rotary control knobs.

Number of Channels
2

Fixed Output Level
2.0Vrms Unbalanced
4.0Vrms Balanced

Output Impedance
100 ohms Unbalanced and Balanced

Frequency Response
±0.5dB from 20Hz-20kHz

Signal To Noise Ratio
Better than 100dB (A-weighted)

Dynamic Range
Better than9 6dB

Total Harmonic Distortion
0.002% @ 1000Hz

Channel Separation
Better than 7#85dB (1,000Hz)

Digital-to-Analog Converter (DAC) Type
8-channel, 32-bit PCM/DSD, Quad Balanced

Coaxial Sample Rate
16, 24-bit/192kHz

Optical Sample Rate
16, 24-bit/192kHz

USB Sample Rate
16, 24-bit/192kHz
Native DSD and DoP DSD Up to DSD256, DXD384

Digital Coaxial Input
0.5V p-p/75 ohms

Digital Optical Input
-15dbm to -21dbm

Disc Formats
SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA

Dimensions (W x H x D)
30.9cm x 19.7cm x 41.3cm

Weight
9.3 kg

Shipping Weight
12.5 kg
