MA252 Hybrid Integrated Amplifier
A beautifully designed modern hybrid integrated amplifier with vacuum tube preamp and solid state power amp

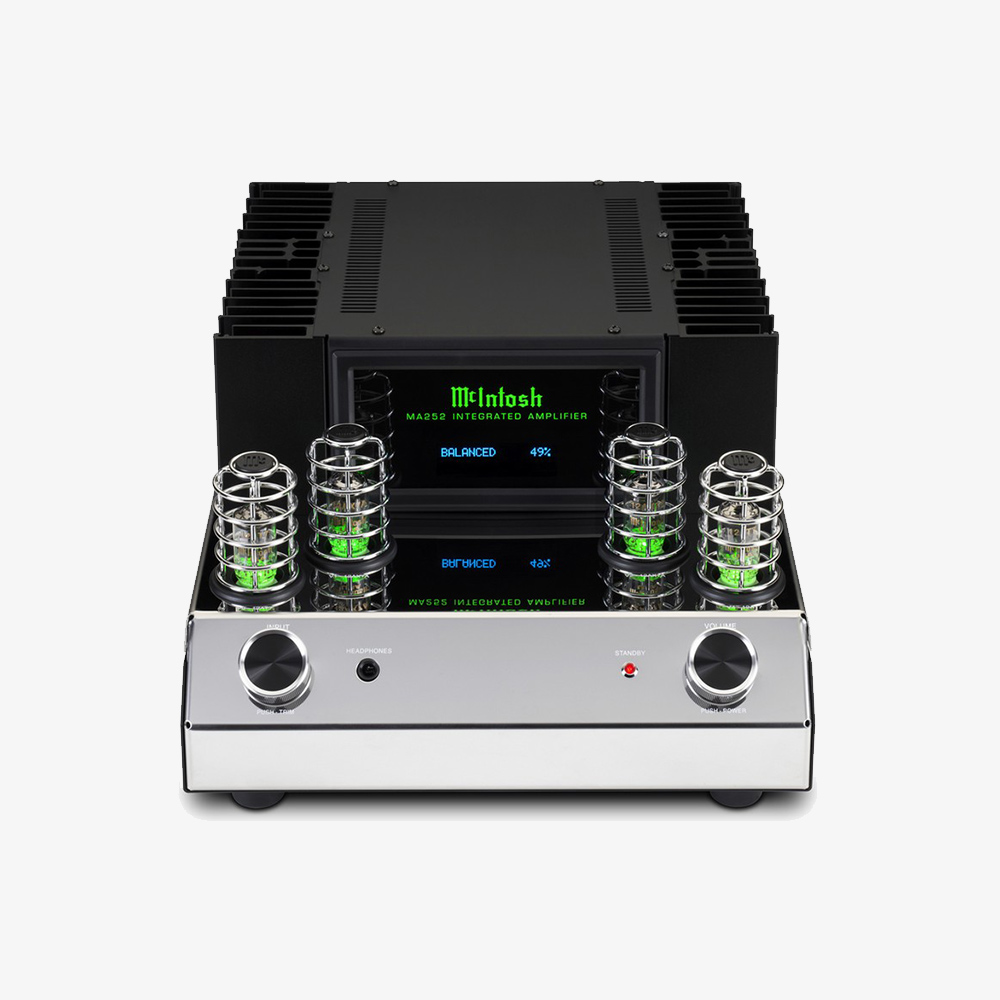

The MA252 Integrated Amplifier is the first hybrid integrated amplifier from McIntosh. Taking retro design cues from the legendary McIntosh MC275 Vacuum Tube Amplifier, the MA252 combines the best of vacuum tube and solid state circuit design to create an amplifier that’s both visually and sonically stunning.

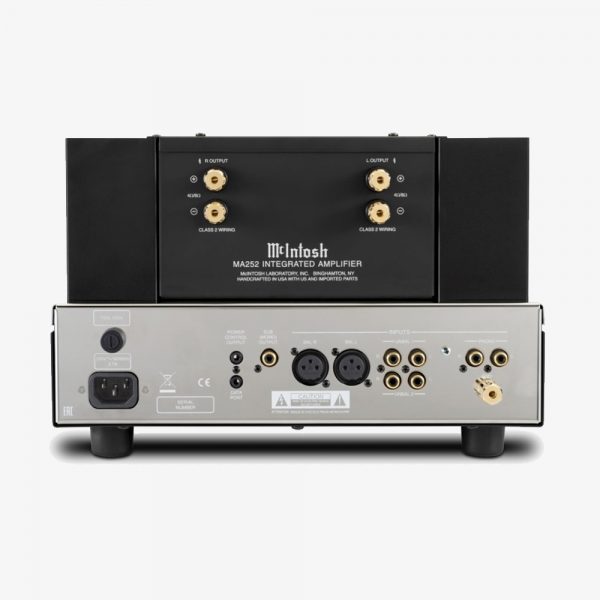

The preamplifier stage uses two 12AX7a and two 12AT7 vacuum tubes housed inside stylish protective cages; the output stage is a direct coupled solid state amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. An all analogue design, it comes with 2 unbalanced, 1 balanced and 1 Moving Magnet phono input for turntables. All 4 inputs can be given user-friendly names in order to simplify user control. Bass and treble tone controls help fine tune your music to your personal preferences. A full range subwoofer output is included for use with a powered subwoofer to further enhance low frequencies.

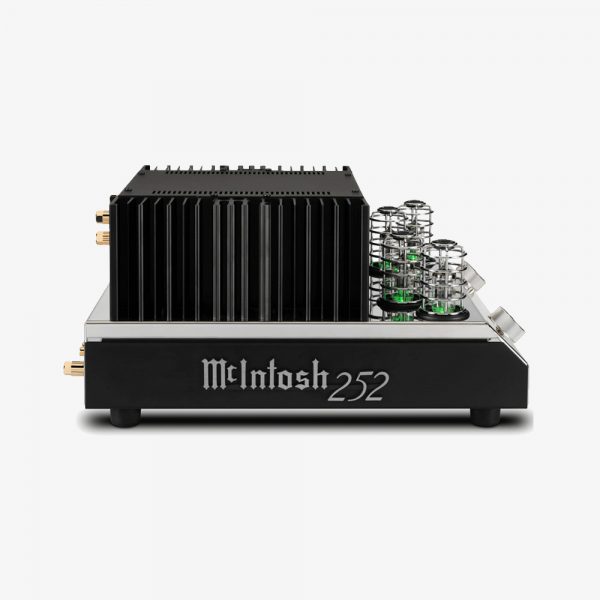

The MA252 features the McIntosh Monogrammed Heatsinks™ which are connected to advanced high current output transistors. These transistors eliminate the typical amplifier warm-up time so that the MA252 is in peak operating condition from the moment it’s turned on. A powerful control microprocessor is used for smooth system operation, along with some of the latest audio-grade circuit components that deliver the best possible sound.
Thanks to its solid state output, the MA252 is McIntosh’s first product containing vacuum tubes to include the patented Power Guard® technology. Power Guard monitors the output signal for signs of over driving and makes real time micro adjustments to the input signal to prevent harsh sounding clipping that could potentially damage your speakers. If Power Guard is activated, the 2 vacuum tubes connected to the affected audio channel(s) will flash an amber colour; they will return to their normal green colour when the clipping has stopped.

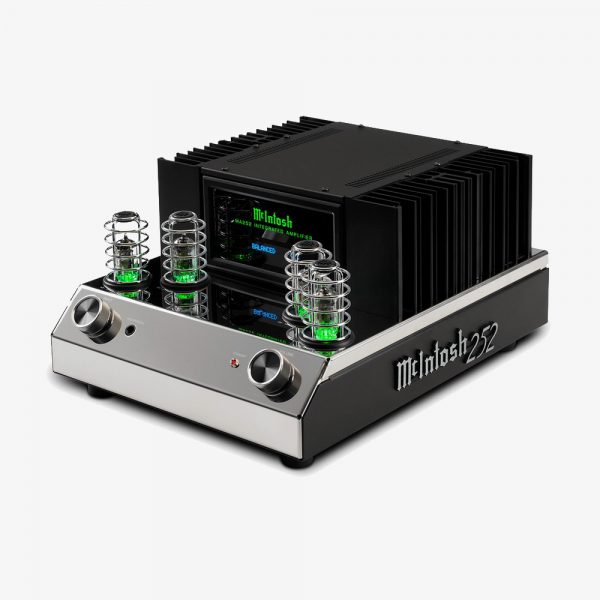

Other McIntosh technologies found in the MA252 include Sentry Monitor™, High Drive headphone amplifier and gold-plated speaker binding posts. Input selection, bass, treble, tone bypass, balance and input offset levels can be adjusted using the front panel knobs or the included remote control; all settings and input selection will be shown on the OLED display. The entire unit sits atop a beautiful polished stainless steel chassis with a classic McIntosh-styled die cast aluminium name badge attached to each side.
Power Output per Channel
100 Watts into 8 Ohms
160 Watts into 4 Ohms
Number of Channels
4 or 8 Ohms
Rated Power Band
20Hz to 20kHz
Total Harmonic Distortion
Frequency Response +0,-0.5dB
20Hz to 20kHz
Frequency Response, +0, -3dB
10Hz to 100kHz
Sensitivity Phono (Moving Coil)
Sensitivity Phono (Moving Magnet)
Sensitivity High Level (Balanced / Unbalanced)
Signal To Noise Ratio (Moving Magnet)
Signal To Noise Ratio (High Level)
Input Impedance (Balanced / Unbalanced)
8 Ohms: >200
4 Ohms: >100
Maximum Output (Balanced / Unbalanced)
Dimensions (W x H x D)
30.5cm x 19.4cm x 45.7cm
