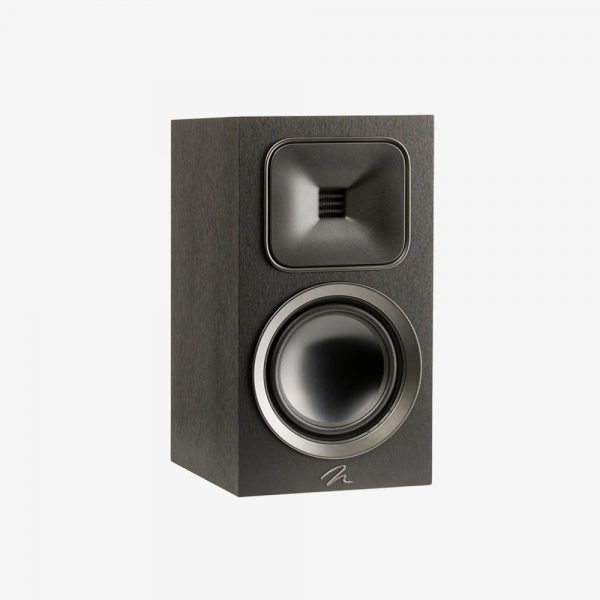

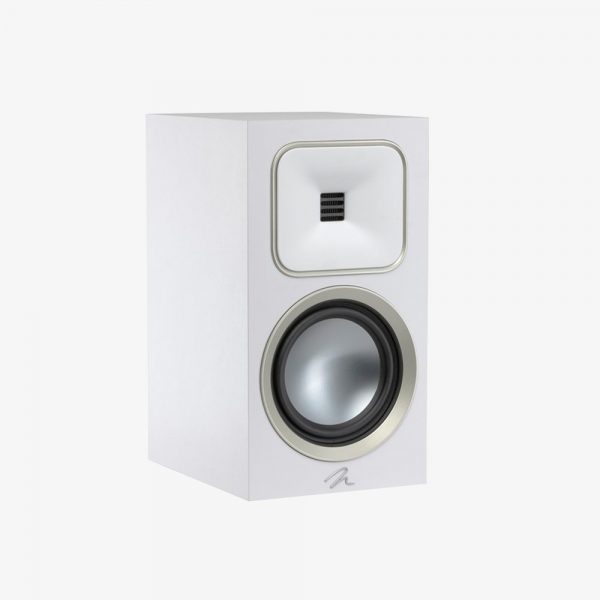

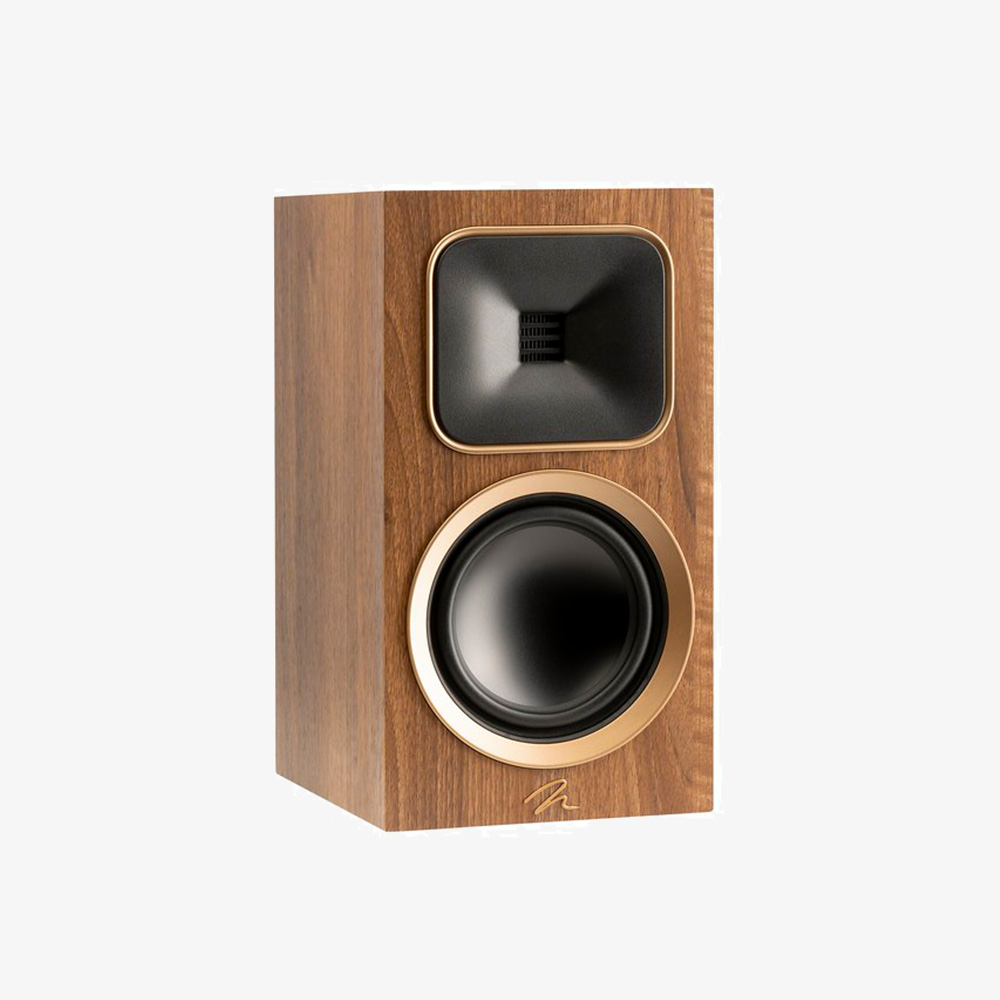

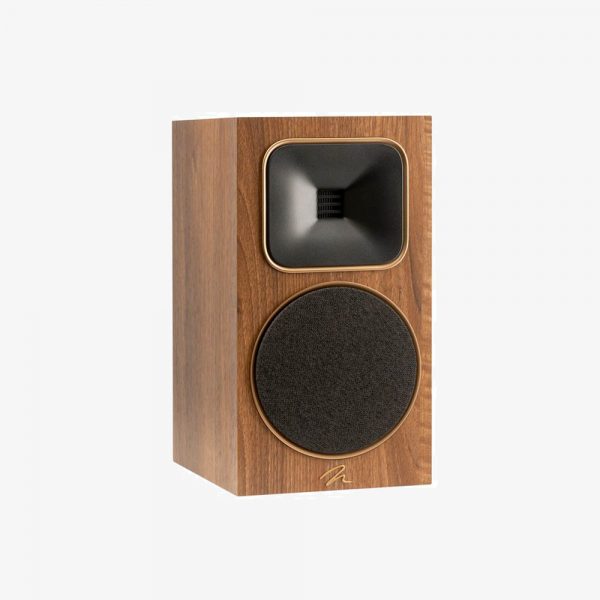

Motion Foundation B1 Bookshelf Speakers

Small in size but not sound, the most compact Motion Foundation model offers unheard of performance from such a versatile size.

Clear
3 Years
Enquiry

Description

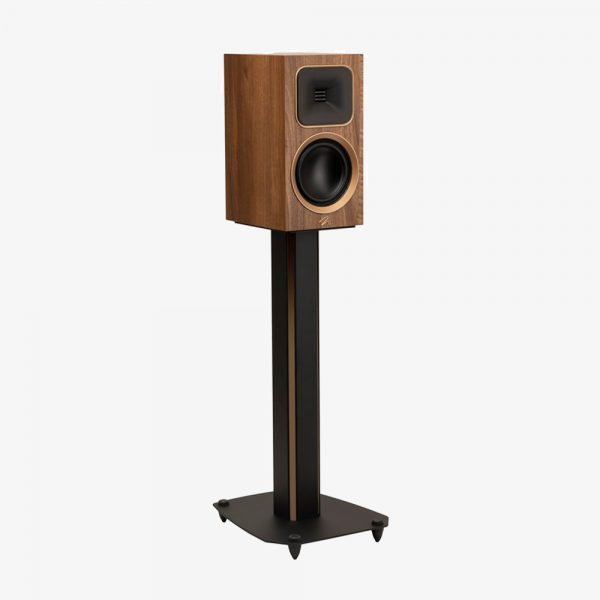

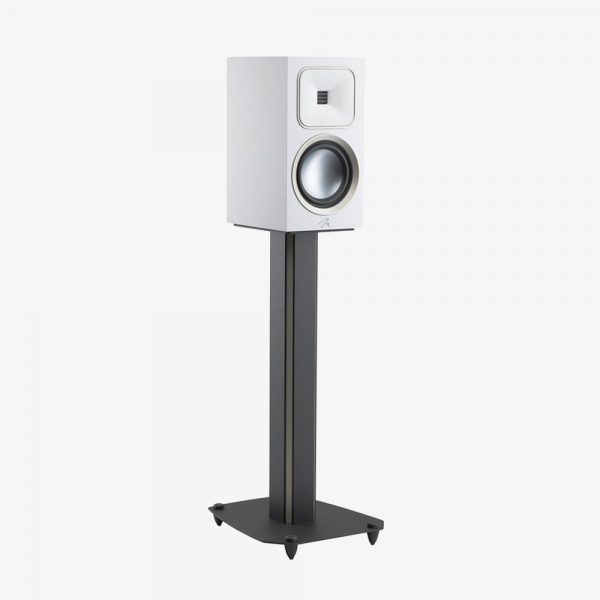

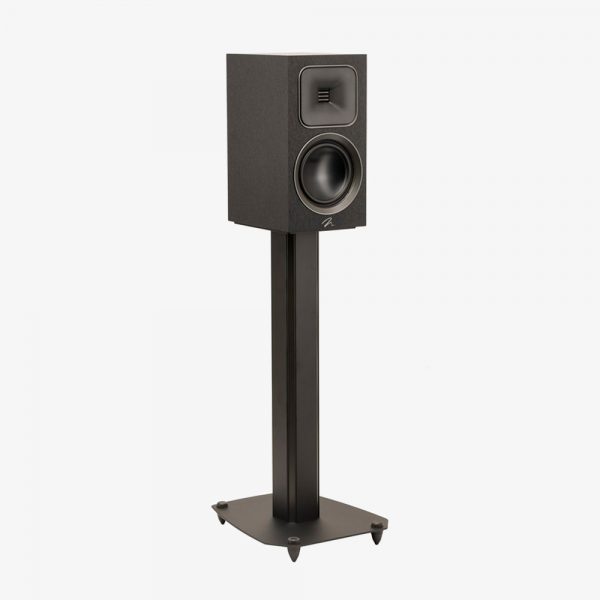

The Gen2 Obsidian Folded Motion Tweeter S, Folded Motion Waveguide, and 5.5” aluminum midbass driver work together here to create a completely unexpected and engaging experience from a compact footprint. Foundation B1 is ideal for small spaces, especially when combined with a subwoofer, to create a highly musical, detailed experience wherever high quality sound is desired. Foundation B1 is also threaded to work with our STAND25 to create a stable stand mount solution.

The MartinLogan Foundation Story
MartinLogan Foundation Series products redefine affordability by incorporating many of MartinLogan’s renowned high-performance technologies at accessible prices.

Leveraging 40 years of design and engineering prowess and offering MartinLogan’s renowned thin-film performance, Motion® Foundation is a gateway into the world of true hi-fi sound. With a choice of 5 different models in 3 different finishes, Motion® Foundation speakers are an ideal foundation for building a high performance Stereo or Surround sound system. Bringing high end performance to a wider audience, Motion® Foundation offers incredible immersion for all your favourite content.

Legendary MartinLogan Sound
MartinLogan speakers are known for their exceptional articulation, detail and realism, regardless of the listening environment. By using advanced thin-film technologies and Controlled Dispersion, MartinLogan delivers a unique and unparalleled listening experience that is not commonly found in other speakers.

Gen2 Obsidian Folded Motion Tweeter S
The Gen2 FMT S offers effortless performance, unmatched by conventional technologies. By folding thin film material, MartinLogan is able to pack more surface area into a small space. Large surface area, light weight and low excursion means an incredibly fast and responsive tweeter capable of reproducing the most nuanced content with stunning detail and clarity.

Folded Motion® Waveguide
After an extensive evaluation of nearly 50 design options, the Folded Motion® Waveguide profile was meticulously chosen to harmoniously align with the dispersion of the midrange drivers, resulting in enhanced output. The waveguide guarantees consistent sound quality regardless of the listener’s position and minimizes unwanted room reflections. Proper waveguide design is crucial as it helps control the sound’s dispersion pattern, ensuring that the sound is evenly distributed across the listening area and resulting in optimal sound quality.

Aluminium Midrange & Bass Drivers
Using trickle down technology from MartinLogan’s own Motion XT and Motion Series, the F2 uses the exceptional properties of Aluminium to maximize clarity, detail, and output from the midrange and bass drivers.

Modern Design Featuring Luxurious Finishes
Motion® Foundation® models are available in 3 timeless finishes to compliment any décor: Walnut with Bronze trim, Black with Gunmetal trim, or Satin White with Silver trim.

Frequency Response

48 Hz – 23 kHz ± 3 dB

Tweeter Dispersion (horizontal x vertical)

90° x 90°

Recommended Amplifier Power

15 – 100 watts

Sensitivity

89 dB

Impedance

5 ohms

High Frequency Driver

0.94” x 1” (2.4 x 2.5cm) Gen2 Folded Motion® Tweeter S with 3.5 in2 (22.6 cm2) diaphragm.

Crossover Frequency

3,400 Hz (2-way)

Mid-Frequency Drivers

5.5” (14cm) aluminum cone with stamped steel basket. Non-resonant asymmetrical chamber format. Unibody cone construction.

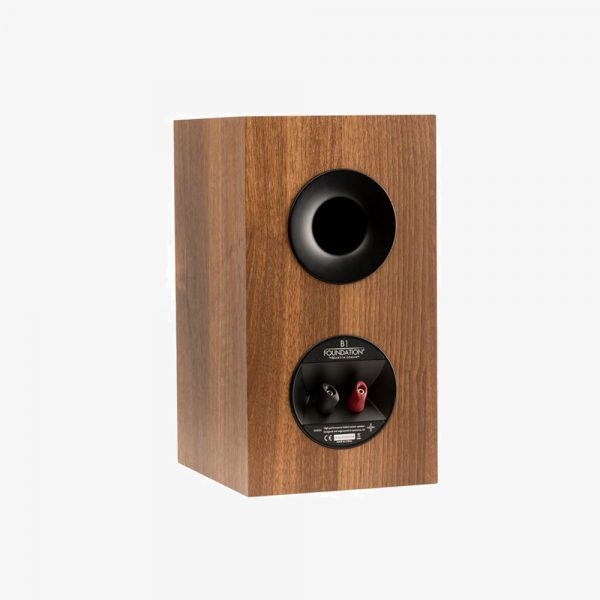

Cabinet

Rear Ported

Binding Post Inputs

5-way Binding Posts (Non Bi-Wire)

Weight

11.5lbs / 5.2kg

Dimensions (H x W x D)

13-11/16” x 7-1/4” x 9-1/2”
34.6cm x 18.4cm x 24.05cm

Finish

Black, Walnut, and Satin White
