Martin Logan

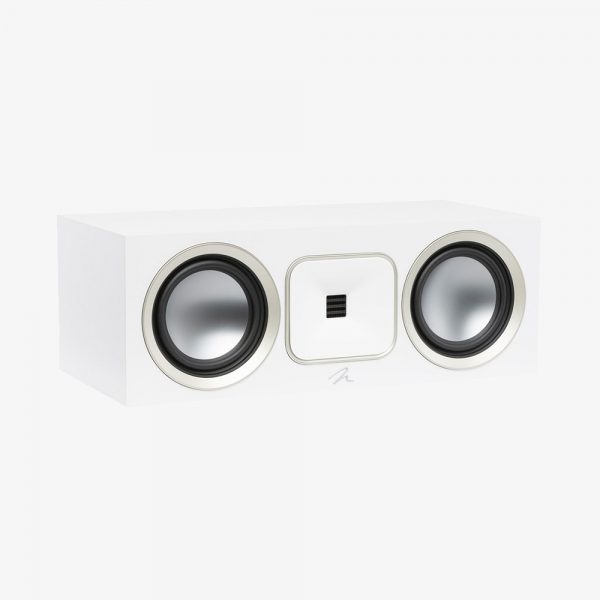

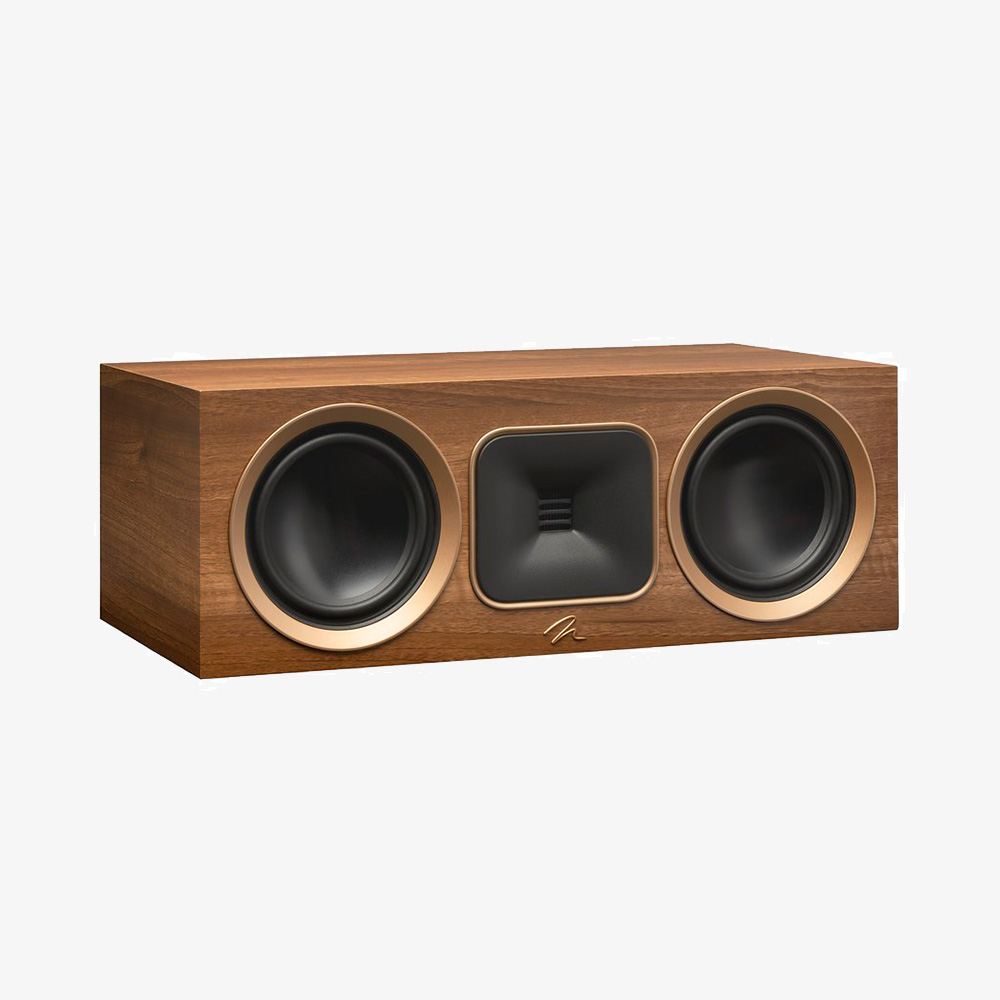

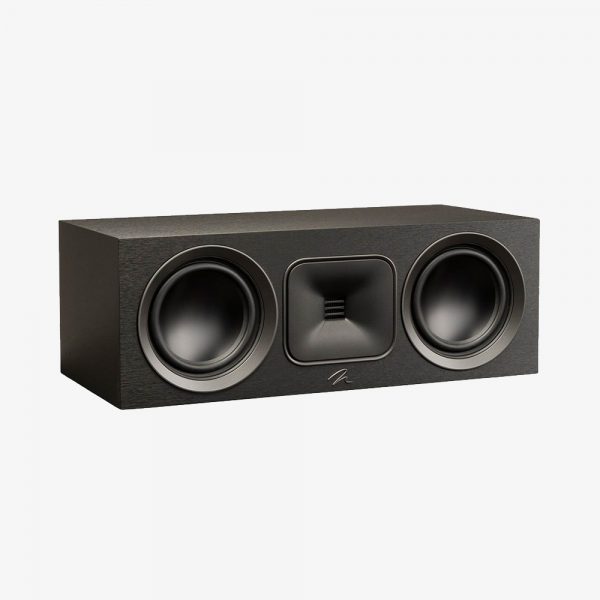

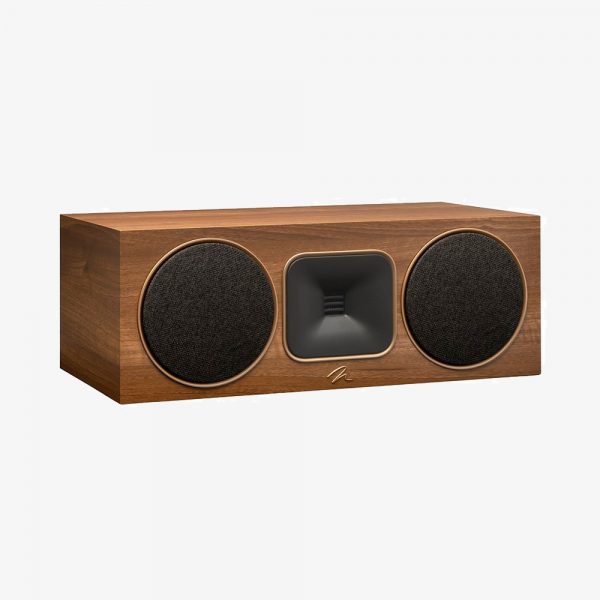

Motion Foundation C1 Centre Speaker

Foundation C1 offers incredibly clear dialogue to round out the front stage of any Motion Foundation surround sound system all in a space conscious design.

Clear
3 Years
Enquiry

Description

For those building out a surround sound system, the centre channel is one of the most important pieces. The majority of dialogue in a movie comes from this speaker, so it is critically important that dialogue be clear. As with all Motion Foundation models the Gen2 Obsidian Folded Motion Tweeter S and Folded Motion Waveguide are used to great effect here to blanket your listening area in crystal clear dialogue. Foundation C1’s aluminium midbass drivers are also further enhanced by MartinLogan’s signature 2.5 way “Anti-Lobing” centre channel design to provide the performance of larger 3 way designs in a much more furniture friendly package.

The MartinLogan Foundation Story
MartinLogan Foundation Series products redefine affordability by incorporating many of MartinLogan’s renowned high-performance technologies at accessible prices.

Leveraging 40 years of design and engineering prowess and offering MartinLogan’s renowned thin-film performance, Motion® Foundation is a gateway into the world of true hi-fi sound. With a choice of 5 different models in 3 different finishes, Motion® Foundation speakers are an ideal foundation for building a high performance Stereo or Surround sound system. Bringing high end performance to a wider audience, Motion® Foundation offers incredible immersion for all your favourite content.

Legendary MartinLogan Sound
MartinLogan speakers are known for their exceptional articulation, detail and realism, regardless of the listening environment. By using advanced thin-film technologies and Controlled Dispersion, MartinLogan delivers a unique and unparalleled listening experience that is not commonly found in other speakers.

Gen2 Obsidian Folded Motion Tweeter S
The Gen2 FMT S offers effortless performance, unmatched by conventional technologies. By folding thin film material, MartinLogan is able to pack more surface area into a small space. Large surface area, light weight and low excursion means an incredibly fast and responsive tweeter capable of reproducing the most nuanced content with stunning detail and clarity.

Folded Motion® Waveguide
Enhances the Controlled Dispersion of the tweeter, blanketing the listening area with incredible detail and precision. Avoids performance robbing room reflections and provides a more consistent sound across a wider seating area.

Aluminium Mid-Bass Drivers
Using trickle down technology from MartinLogan’s own Motion XT and Motion Series, the C1 uses the exceptional properties of Aluminium to maximize clarity, detail, and output from the dual mid-bass drivers.

Anti-Lobing Centre Channel Design
Motion® center channels utilize a 2.5-Way crossover design to eliminate lobing and preserve the tonality of the source material. This results in a significant reduction of negative effects on sound reproduction, leading to a more precise and accurate listening experience.

Modern Design Featuring Luxurious Finishes
The latest Motion® speakers utilize cutting-edge technology and the highest quality materials to deliver sound quality that is truly unmatched. Their sleek, sophisticated design is an artful complement to any interior. Available in three finishes of Walnut, Satin White or Gloss Black, these speakers are an exquisite addition to any discerning individual’s home. Upgrade your audio experience and enhance your space with the Motion® series.

Frequency Response

53 Hz – 23 kHz ± 3 dB

Tweeter Dispersion (horizontal x vertical)

90° x 90°

Recommended Amplifier Power

15 – 100 watts

Sensitivity

91 dB

Impedance

4 ohms

High Frequency Driver

0.94” x 1” (2.4 x 2.5cm) Gen2 Folded Motion® Tweeter S with 3.5 in2 (22.6 cm2) diaphragm.

Crossover Frequency

2,900 Hz, 3,200 Hz (2.5-way)

Mid-Frequency Drivers

2x 5.5” (14cm) aluminum cone with stamped steel basket. Non-resonant asymmetrical chamber format. Unibody cone construction.

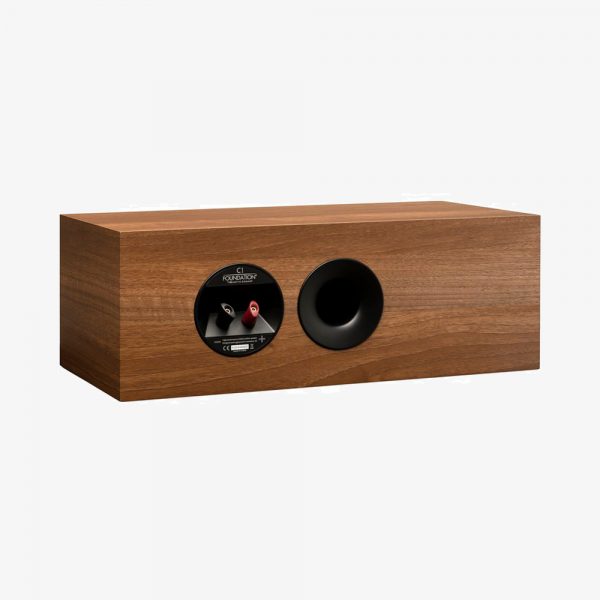

Cabinet

Rear Ported

Binding Post Inputs

5-way Binding Posts (Non Bi-Wire)

Weight

18lbs / 15.4kg

Dimensions (H x W x D)

7-5/8” x 20” x 10”
20.3cm x 61cm x 36.8cm

Finish

Black, Walnut, and Satin White
