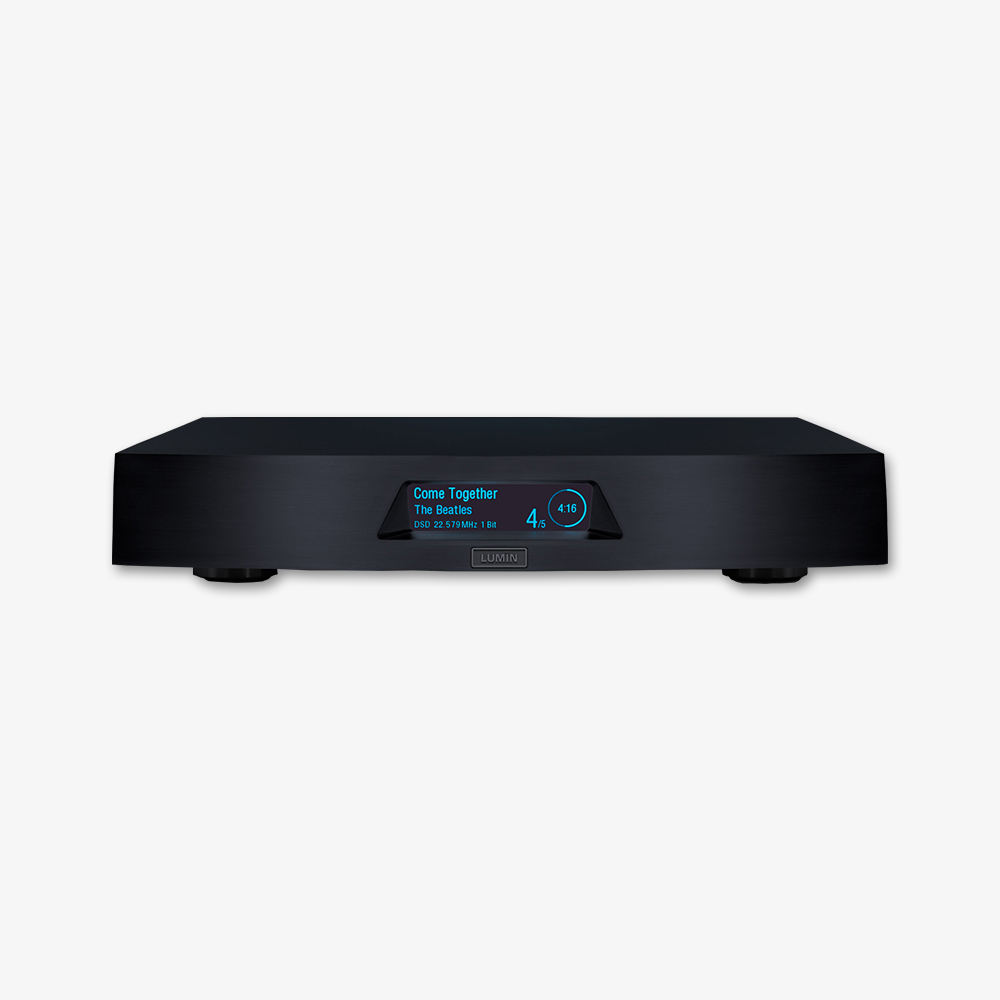

X1 Streamer
Hear every last musical detail. Re-engineered without compromise, X1 redefines the digital musical experience.
Description
The X1 is Lumin’s flagship streamer. They have claimed to have designed without compromise. It features many upgrades from the lower models including a new processor delivering native DSD512 & PCM768 playback. The X1 also features a unique dual mono design throughout which maximises channel separation.
Another significant upgrade with the X1 model is its power supply. This entirely new PSU is built from solid billet CNC casing design, with separate digital & analogue circuitry. It has a low-noise linear regulator and a new 9-pin connector.
Inside the X1 are the sophisticated Dual ES9038Pro SABRE DACs featuring 140dB dynamic range. These DACs help the X1 to give its trademark, very musical / enjoyable sound.
Other features of the X1 include a femto Clock System with precision FPGA distribution, new output buffer design, dual mono dual stage linear regulator, an optical network which provides complete isolation from network digital noise and USB digital audio output supports native DSD512.
Product Specifications
DSD SUPPORT:
Up to DSD512 22.6MHz, 1-bit
PCM SUPPORT:
Up to 768kHz, 16–32-bit, Stereo
ANALOG OUTPUT STAGE:
Dual ESS SABRE32 ES9038Pro DAC chips
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution
UPSAMPLING RATES & BIT DEPTHS:
DSD128 upsampling option for all files
PCM 384kHz upsampling option for all files
DIGITAL OUTPUT STAGE:
USB:
Native DSD512 support
PCM 44.1–768kHz, 16–32-bit, Stereo
BNC SPDIF:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
OPTICAL NETWORK:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
POWER SUPPLY:
External solid billet cnc dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
9-pin Output Connector
PHYSICAL:
FINISH:
Black anodised brushed aluminium (with matching PSU)
Raw brushed aluminium (with matching PSU)
LUMIN (SOLID ALUMINIUM CHASSIS):
350mm (W), 345mm (D), 60mm (H), 8kg
PSU (SOLID ALUMINIUM CHASSIS):
106mm (W), 334mm (D), 60mm (H), 4kg
STREAMING PROTOCOL:
UPnP AV protocol with audio streaming extension (OpenHome)
Roon Ready
Spotify Connect
AirPlay-compatible
Gapless Playback
On-Device Playlist
APP FEATURES:
Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
Tidal MQA icons to identify high-res music
Qobuz high-res icons to identify high-res music
Volume control
High-resolution artwork
Artwork caching
Search
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists/album/songs
Saving and restoring of playlists (including Tidal and Qobuz)
SUPPORTED AUDIO FILE FORMATS:
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3, AAC (in M4A container)
MQA
INPUT:
Ethernet RJ45 network 1000Base-T
USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
ANALOGUE AUDIO OUTPUTS:
XLR balanced, 6Vrms, pin 2 Hot
RCA unbalanced, 3Vrms
SUPPORTED CONTROL DEVICES:
All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.
Android devices. Android 4.0 (Ice Cream Sandwich) or later required
OTHER:
Leedh Processing lossless digital volume control
Programme of Continuous Development – Firmware-upgradable for further features and enhancements
