Devialet Expert 220 ProDevialet Expert 220 Pro
Devialet

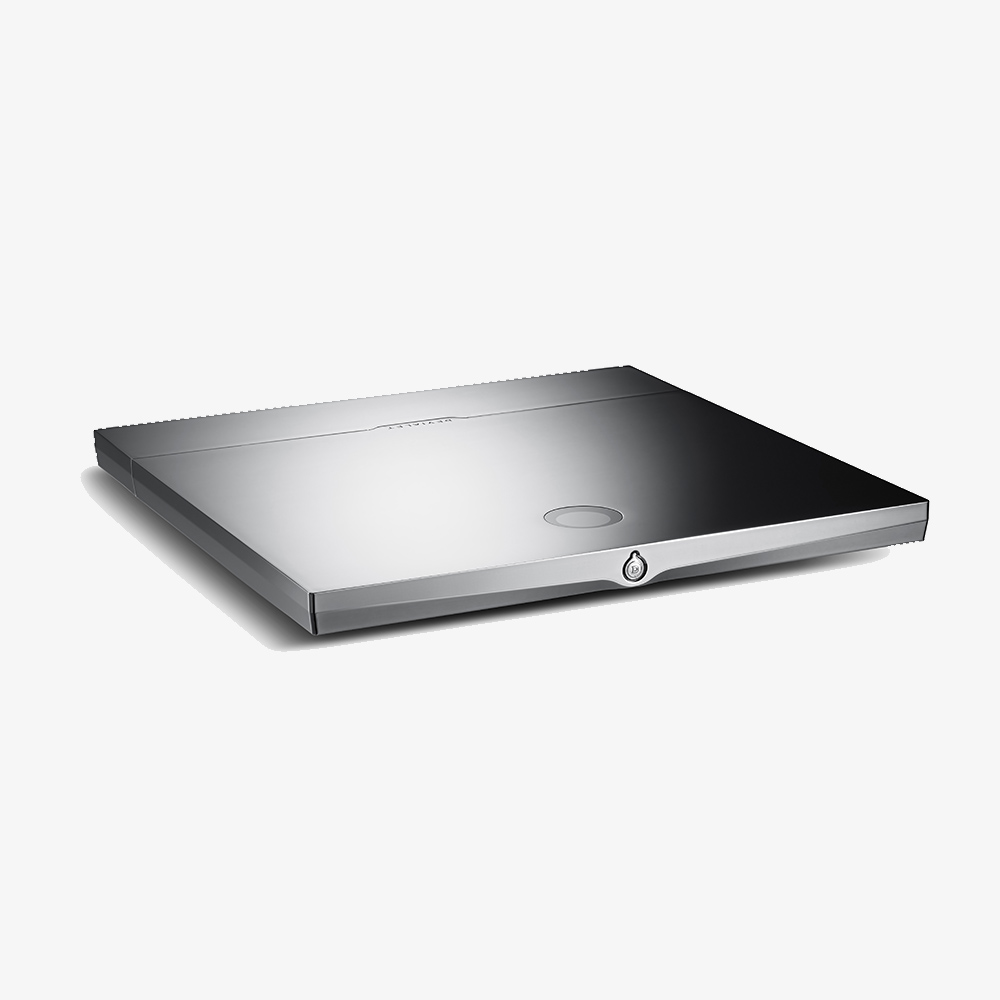

Expert 220 Pro Amplifier

Utter connectivity for the most demanding audiophiles. The Expert 220 Pro embeds the full set of Devialet technologies, as well as an ultra-configurable phono stage, designed for vinyl enthusiasts.

5 Years

£6,990

Enquiry

Description

Thanks to a built-in phono stage, the analogue signal’s lossless digitalisation allows you to configure and adapt the Devialet 220 Pro precisely to your turntable’s cartridge and generate exceptional sound quality. What’s more, the online sound configuration utility lets you choose the cartridge type (MM/MC) and set the sampling rate and the RIAA curb for customised adjustment of your phono pre-amplification.

Every Expert 220 Pro input is configurable, meaning an unlimited amount of settings at your disposal, whether they be analogue inputs, digital inputs or outputs of either kind, the Expert 220 Pro adapts to your needs.

The built-in EVO card enables free, regular updates of the internal software that offer you the ability to improve the performance of your Devialet or to take advantage of new features in just a few clicks.

The 220 Pro comes with the latest Core Infinity firmware, which allows you to stream from the Devialet in a number of ways whether it be by Airplay, UPnP or via Roon. This means you are able to stream with ease from services like iTunes, Spotify, Tidal and Qobuz.

Like all Expert devices, the 220 Pro is fully controlled by software that allows you to configure it via their online configuration tool. Customise each of your inputs according to the sound source to achieve the best possible results.

On its own, the 220 Pro is an exceptional stereo system but it can also be upgraded at a later date by adding another 220 Pro and creating a dual-mono 440 Pro system.

Range
Stereo

Exclusive Technologies
ADH®, SAM®, RAM®, AIR®, EVO®, DAC Magic Wire®

Streaming Services
UPnP
Airplay®
Spotify Connect

Daisy Chaining
Up to 8 units

Phono Stage
Standard (MM / MC)

Pre-amplifier Output
Optional (on order)

Casing
Carved out from a single aluminium block

Side Plating
No

Dimensions
Width: 383mm | Depth: 383mm | Height: 40mm

Weight
5.9Kg

Power
2×200 Watts RMS under 6Ω

Distortion at Full Power
0.0005% THD+N

Distortion at Full Power
0,00025% (10W / 6Ω)

Distortion at 10W
0.00025% THD+N

Distortion at 10W
0,0005% THD+N

Signal to Noise Ratio
130dB

Output Impedance
0.001Ω

Damping Factor
8000

Bandwidth
DC-30kHz @ -0.1dB
DC-95kHz @ -3dB

Phase Rotation
0.4° at 20kHz
1.8° at 40kHz

Thermal Distortion
Below measurement threshold

Wif-fi
2.4GHz / 5GHz 802.11ac, compatible with 802.11a/b/g/n

Ethernet
RJ45 100/1000 Mbps

USB
USB Audio 2.0 Asynchronous
Very low latency
Bi-directionality (for digitisation of the analog sources)

Digital Coaxial Inputs
Up to 4x RCA 75Ω

Digital Optical Inputs
1x TOSLIN
Up to 1x miniTOSLINK 3.5mm

Supported Formats
Up to 32bits / 192kHz PCM (USB)
Up to 24bits / 192kHz PCM (AIR®, UPnP, Coaxial)
Up to 24bits / 96kHz PCM (Optical)
Up to 1bit / 3.072000MHz DSD64 (USB, Coaxial)

Analogue Inputs
Up to 2x RCA stereo
Sensitivity adjustable via the Configurator
Advanced phono stage (MM / MC)

Speaker Output
4mm banana plugs, fork connectors or stripped cables
Compatible with all speakers from 8Ω to 2Ω
Short-circuit protection
Active filtering available

Home Automation
Up to 1x RS232 3.5mm 115200 bauds (documentation available via the Configurator)

Trigger
3.5mm trigger connector Trig In and Trig Out

1 Devialet Expert 220 Pro, 1 Expert Remote (3 AAA batteries LR03 1,5V included), 1 User Manual, 1 Warranty booklet (5 years), 1 SD card, 1 Power cable, 1 Pair of gloves, 1 Microfibre cloth
