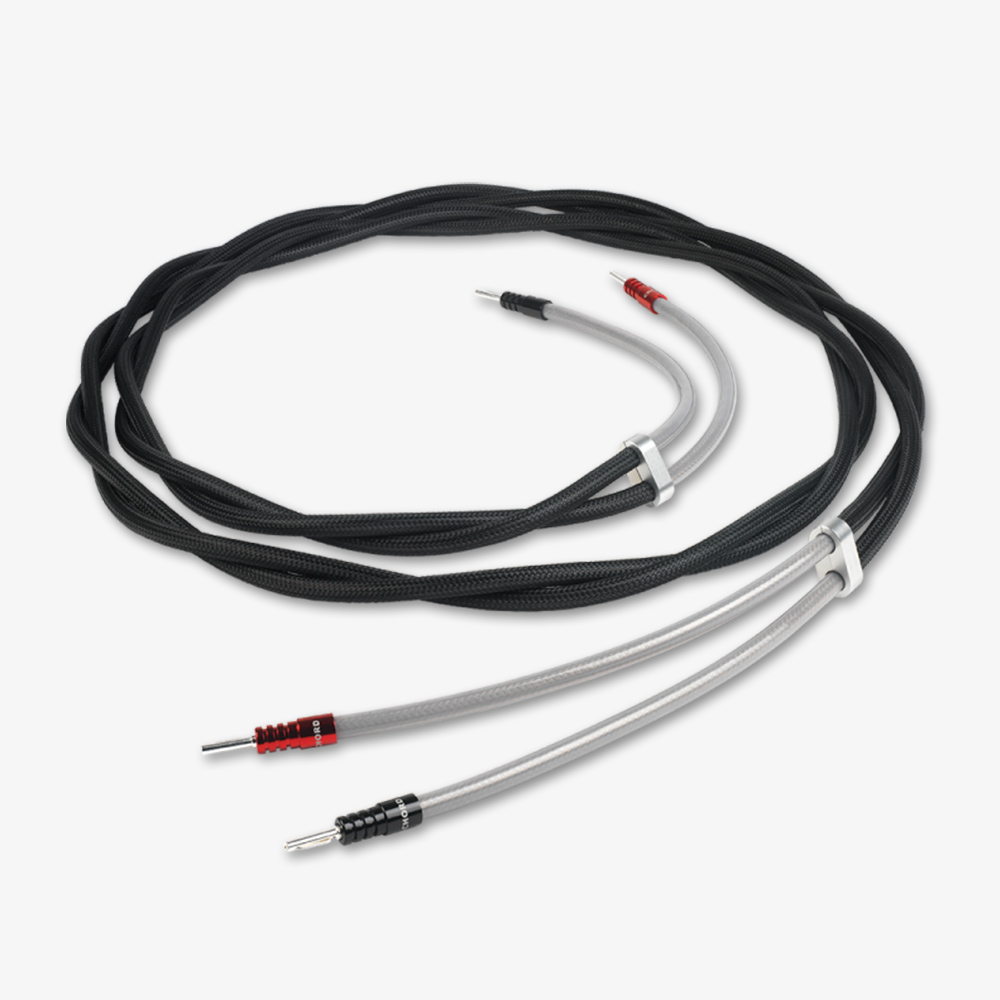

SignatureXL Speaker Cable

SignatureXL is the latest version of one of Chord’s longest running (and universally loved) products. The original Signature was their first high-frequency shielded speaker cable (2004) and marked a massive leap in speaker cable performance.

Clear
Lifetime
Enquiry

Description

The original Signature was the biggest, stiffest, brightest cable Chord has ever made. The conductors were oxygen free copper, the insulation was gas foamed Polyethylene, Shielding was a three layer braid and foil combination, effective to high frequencies and the outer jacket a flexible polyethylene. It was just flexible enough to fit into a system. It didn’t need a press release or a review, it took off so fast by word of mouth, that for a while there was almost a permanent waiting list.

It remained unchanged for about ten years, until they could apply improved building techniques and materials such as more efficient shielding, silver-plated conductors and PTFE insulation that would produce a more neutral tonal characteristic and a cable better able to carry detail, dynamics and timbre. This became Signature Reference.

Signature Reference, like most of their cables, used PTFE insulation (often referred to as Teflon™) and until the arrival of Taylon®, was our “go to” material. Although expensive, it offered the best performance.

Material technology is constantly developing and improving and alternatives to PTFE are now available. While the high cost of Taylon® prevents Chord from using this in the Signature range, they were able to find a suitable family of insulation materials known as XLPE (Cross-linked Polyethylene). One version of this material looked particularly interesting and following listening tests, proved to be clearly better than the PTFE in Signature Reference.

Every set of SignatureXL speaker cable is built to order and terminated at Chord’s UK factory with ChordOhmic 4mm banana plugs or ChordOhmic spade connectors.

Conductor
Silver-plated, high purity OFC

Insulation
XLPE

Configuration
Twisted pair

Shielding
Individually shielded positive and minus conductors. High density foil and 95% coverage metal braid. Translucent PVC outer jacket

AWG
10

mm2
5.26

Diameter
2 x 8.5mm
