Audio Research

DAC 9 Tube DAC

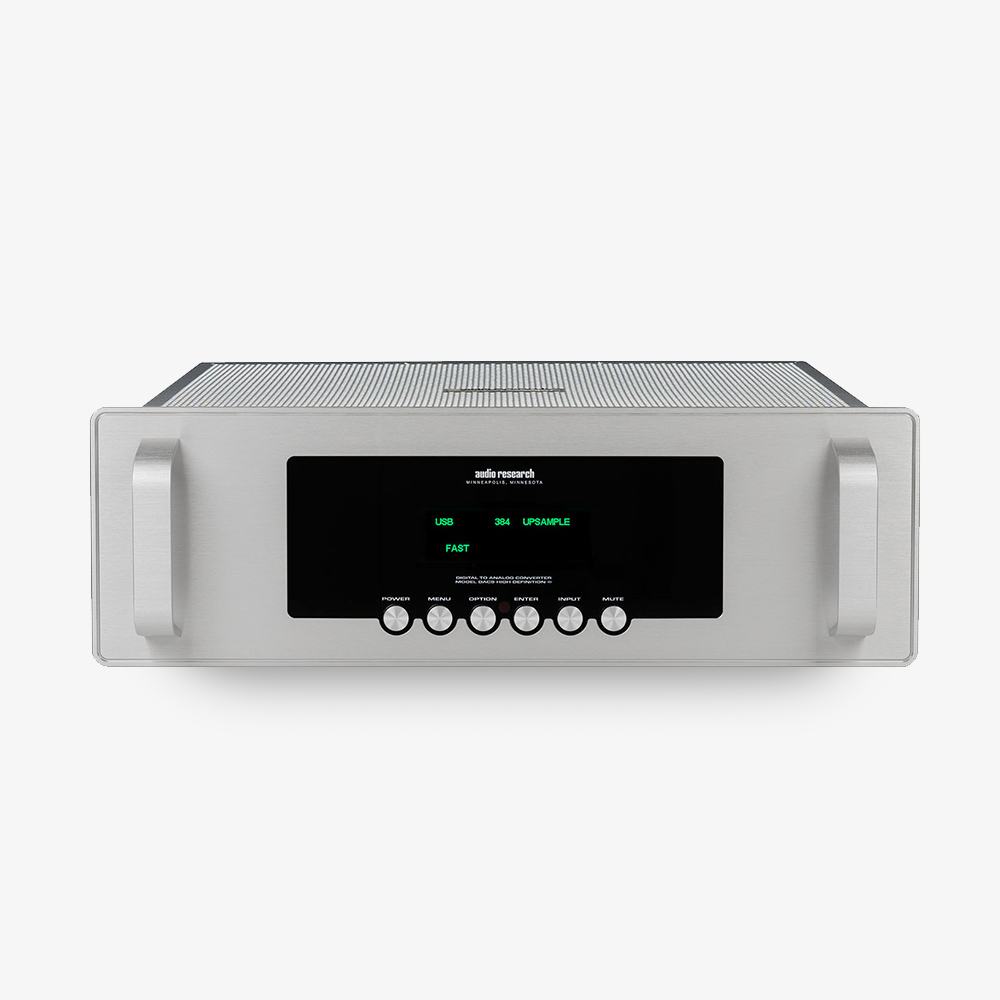

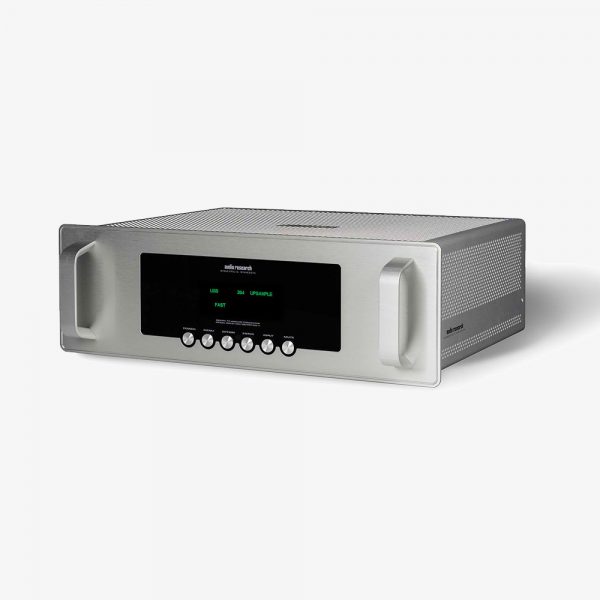

The DAC9 digital-to-analogue converter decodes most current formats with state-of-the-art vacuum tube technology.

3 Years

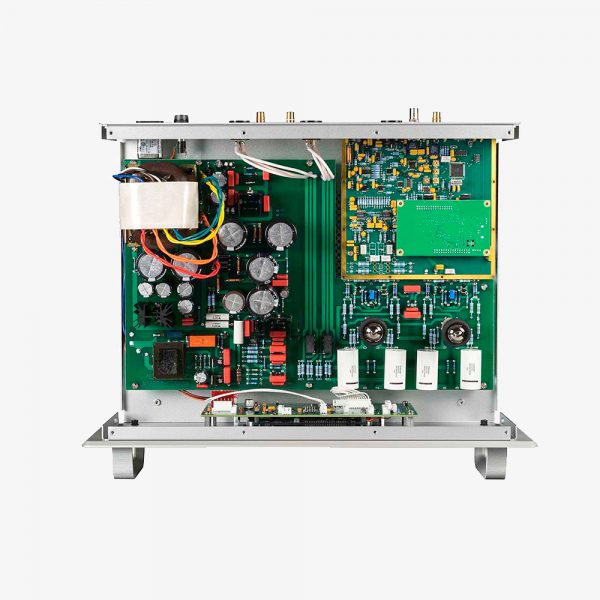

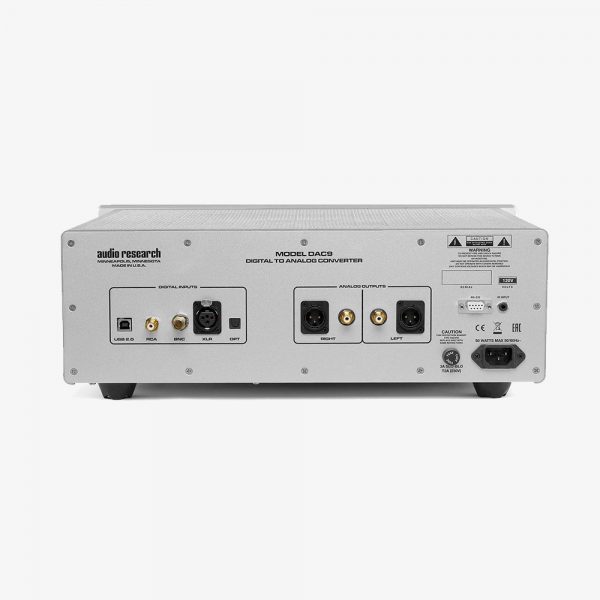

Five digital connections – USB, RCA, BNC, AES/EBU, and Toslink – provide connectivity to all of your digital sources. Quad DAC architecture provides a balanced digital signal, wide dynamic range, and decoding resolutions from red book CD up to 384 kHz and native DSD sampling rates. A pair of 6H30 vacuum tubes are the heart of the analogue circuit. Both balanced and single-ended connectors are provided for output connectivity. Native-rate upsampling and selectable digital filters allow customization of the digital signal.

From the same engineering and design team responsible for the award-winning Reference Series, the Foundation Series family of vacuum tube components has been created to provide incredible musical experiences. Spatial definition, dynamics and detail abound while providing the most natural musical experience.

The first three components include the LS28 line stage preamplifier, the PH9 phono stage, and the DAC9 digital-to-analogue converter. A new amplifier will follow, with other products to complete the series. All models will be available in both black and natural anodized aluminium finishes. Each unit comes with its own custom metal remote control.

Frequency Response

+/-0.15dB  20Hz – 20kHz; +/-3.0dB 6Hz – 192kHz.

THD+ Noise

Less than .002% at  2V RMS 1kHz Balanced output.

Signal to Noise


IMD +  Noise

.001% (SMPTE ratio)

Channel Sepearation


Intrinsic Jitter


DAC Resolution

24 bits.

Push Buttons

Power, Menu, Option, Enter, Input, Mute.

Output Impedance

500 Ohms balanced, 250 Ohms SE.

Digital Filter

Selectable Fast or Slow algorithms.


All Inputs upsample to 384kHz.


USB2.0HS  44.1 to 384kHz, DSD, 2xDSD; RCA, BNC, XLR 44.1 to 192kHz; TOS 44.1 to 96kHz.

Rated Outputs

3.8V RMS Max Balanced; 1.9V max SE (@ 0dB input).

Power Supplies

Electronically-regulated low and high voltage supplies. Line regulation better than .01%.



Tube Complement

(2) 6H30 dual triodes.

Power Requirements

100-125VAC 60Hz (200 – 250VAC 50/60Hz) 60 watts maximum.

Stand By

Less than 2 watt.


Width: 19″ (48 cm)
Height: 7″ (17.8 cm)
Depth: 15.5″ (39.4 cm)
Handles extend 1.50″ (3.8 cm) forward of the front panel.
Weight: 32.0 lbs. (14.6 kg) Net; 43.2 lbs. (19.8 kg) Shipping.
